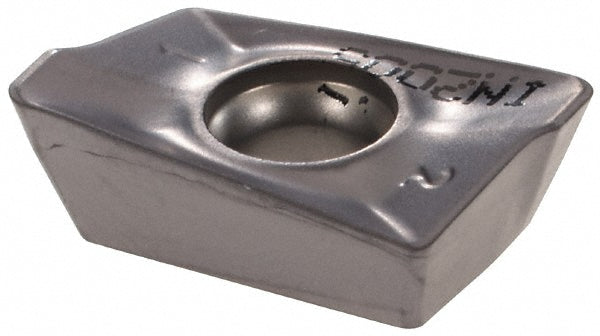

AOMT120408R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811319
MFR# 5811319ISO/ANSI# AOMT120408R IN2005Series AOMT
$21.94List $28.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5811319 is a AOMT120408R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeAOMT120408R IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1X; 12S1X; 12V1X; 22J3X; 22N3X; 2J1X
Cutting edge effective length0.4900
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3250
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleAOMT
Iso codeAOMT120408R IN2005
Length0.5050
Length range0.5000 to 0.6000
Manufacturers catalog number5811319
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1900
Thickness range0.1850 to 0.2000
Width0.3250
