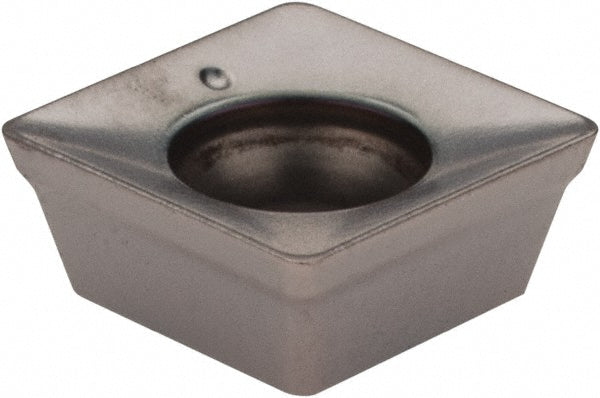

SDMT080305N IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5811340

Ingersoll Cutting Tools

SDMT080305N IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5811340

MFR# 5811340ISO/ANSI# SDMT080305N IN1030Series SDMT

$18.31List $23.45 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5811340 is a SDMT080305N IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSDMT080305N IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius0.0200
Cutter series compatibility15_1E; 15J1E; 15N1E; 15T1E; 5J1E
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code080305
Insert styleSDMT
Iso codeSDMT080305N IN1030
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog number5811340
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.3150
