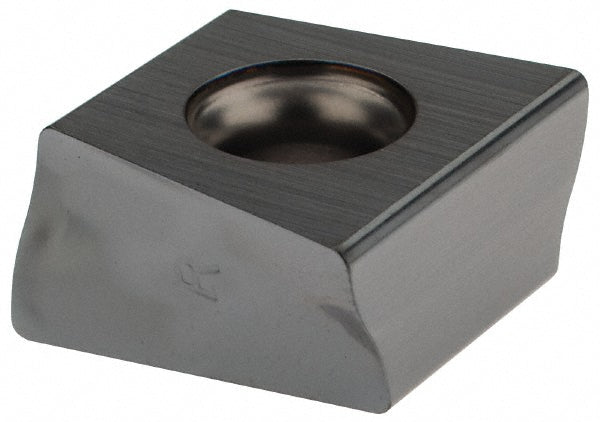

DPM424-001 IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5811539

MFR# 5811539ISO/ANSI# DPM424-001 IN2005Series DPM

$26.04List $33.35 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5811539 is a DPM424-001 IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeDPM424-001 A IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility3SJ6
Cutting edge styleCorner Rounded
Inscribed circle0.5910
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code424
Insert styleDPM
Iso codeDPM424-001 IN2005
Length0.5510
Length range0.5000 to 0.6000
Manufacturers catalog number5811539
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3000
Thickness range0.2500 to 0.3500
Width0.6450
