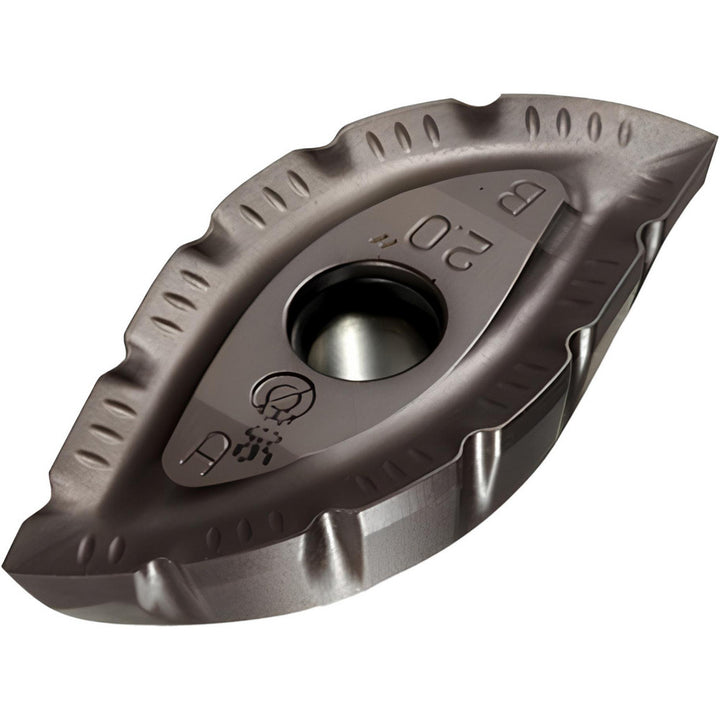

NDET500800R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5812783

Ingersoll Cutting Tools

NDET500800R IN2005 Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5812783

MFR# 5812783ISO/ANSI# NDET500800R IN2005Series NDET

$101.36List $130.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5812783 is a NDET500800R IN2005 solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.

Specifications

Ansi codeNDET500800R IN2005
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1
Cutter series compatibility1BW7; 1BW7X
Cutting edge styleHoned
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size50
Insert size code500800
Insert styleNDET
Iso codeNDET500800R IN2005
Length1.7580
Length range1.0000+
Manufacturers catalog number5812783
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut1.0000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.9860
Thickness range0.5000+
