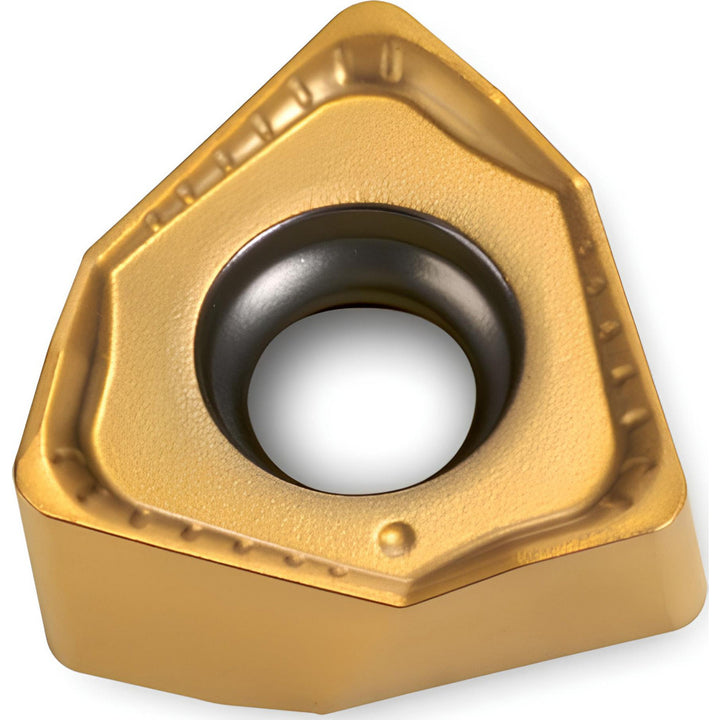

WNGU090408R Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813428

Ingersoll Cutting Tools

WNGU090408R Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5813428

MFR# 5813428ISO/ANSI# WNGU090408RSeries WNGU

$29.28List $37.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5813428 is a WNGU090408R solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeWNGU090408R IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1DJ1F; DJ5F
Cutting edge effective length0.2400
Cutting edge styleCorner Rounded
Included angle degree80
Inscribed circle0.3650
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090408
Insert styleWNGU
Iso codeWNGU090408R
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5813428
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.2400
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.3650
