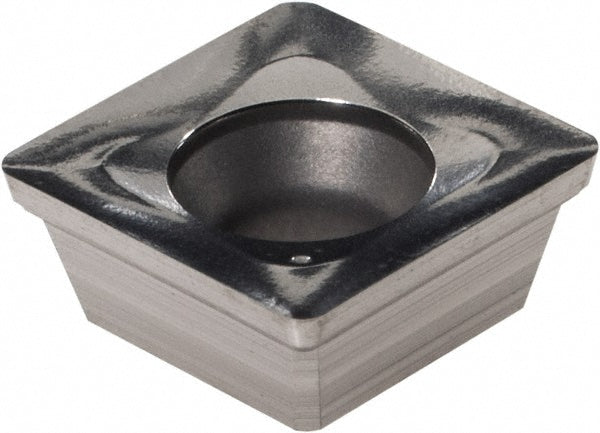

SHET110508R-P IN15K Solid Carbide Insert, Grade IN15K - Ingersoll Cutting Tools 5820586

Ingersoll Cutting Tools

SHET110508R-P IN15K Solid Carbide Insert, Grade IN15K - Ingersoll Cutting Tools 5820586

MFR# 5820586ISO/ANSI# SHET110508R-P IN15KSeries SHET

$24.54List $30.90 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN15K
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5820586 is a SHET110508R-P IN15K solid carbide indexable insert, grade IN15K. Suited for non-ferrous metal.

Specifications

Ansi codeSHET110508FR-P S IN15K
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibility15U1G; 5H6G
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110508
Insert styleSHET
Iso codeSHET110508R-P IN15K
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog number5820586
Manufacturer gradeIN15K
Material applicationNon-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4330
