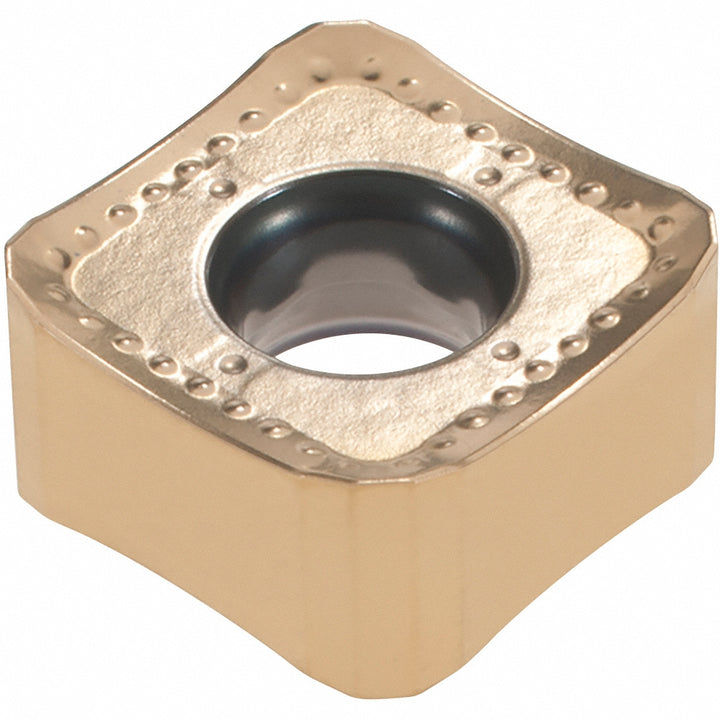

SNGU1205ENN J IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5849014

Ingersoll Cutting Tools

SNGU1205ENN J IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5849014

MFR# 5849014ISO/ANSI# SNGU1205ENN J IN2530Series SNGU

$23.11List $29.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5849014 is a SNGU1205ENN J IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSNGU1205ENN J IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibility1DD1H; DD6H; DL5H; DN5H
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSNGU
Iso codeSNGU1205ENN J IN2530
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number5849014
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
