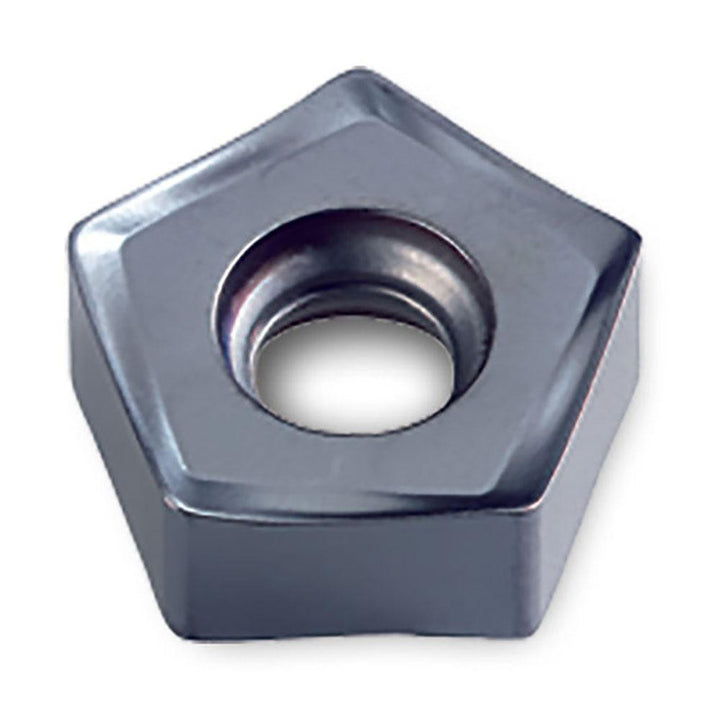

PNCU0805-GNTR IN4015 Solid Carbide Insert, Grade IN4015, TiAlN - Ingersoll Cutting Tools 5853201

Ingersoll Cutting Tools

PNCU0805-GNTR IN4015 Solid Carbide Insert, Grade IN4015, TiAlN - Ingersoll Cutting Tools 5853201

MFR# 5853201ISO/ANSI# PNCU0805-GNTR IN4015Series PNCU

$29.05List $37.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapePentagon
GradeIN4015
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5853201 is a PNCU0805-GNTR IN4015 solid carbide indexable insert, grade IN4015, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codePNCU0805GNTR J IN4015
Chip breakerGNR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility4W2A; DM5G
Cutting edge styleCorner Rounded
Included angle degree108
Inscribed circle0.4500
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size08
Insert size code0805
Insert stylePNCU
Iso codePNCU0805-GNTR IN4015
Length0.4500
Length range0.4500 to 0.5000
Manufacturers catalog number5853201
Manufacturer gradeIN4015
Material applicationCast Iron; Hard Material
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges10
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2060
Thickness range0.2000 to 0.2200
Width0.4500
