SGM-44R001 J IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5856049

Ingersoll Cutting Tools

SGM-44R001 J IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5856049

MFR# 5856049ISO/ANSI# SGM-44R001 J IN2530Series SGM

$30.34List $38.85 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

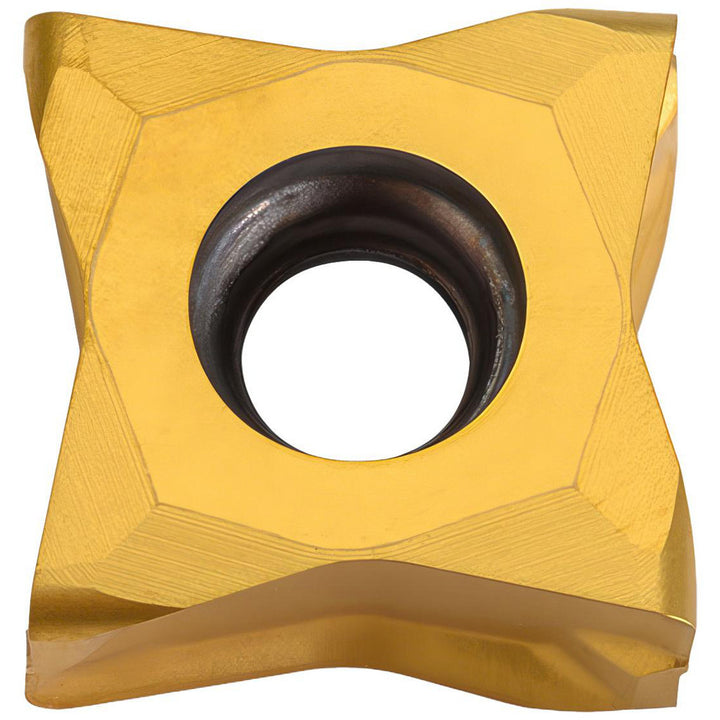

The Ingersoll Cutting Tools 5856049 is a SGM-44R001 J IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSGM-44R001 J IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVJ6K
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size44
Insert size code44
Insert styleSGM
Iso codeSGM-44R001 J IN2530
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog number5856049
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.4724
