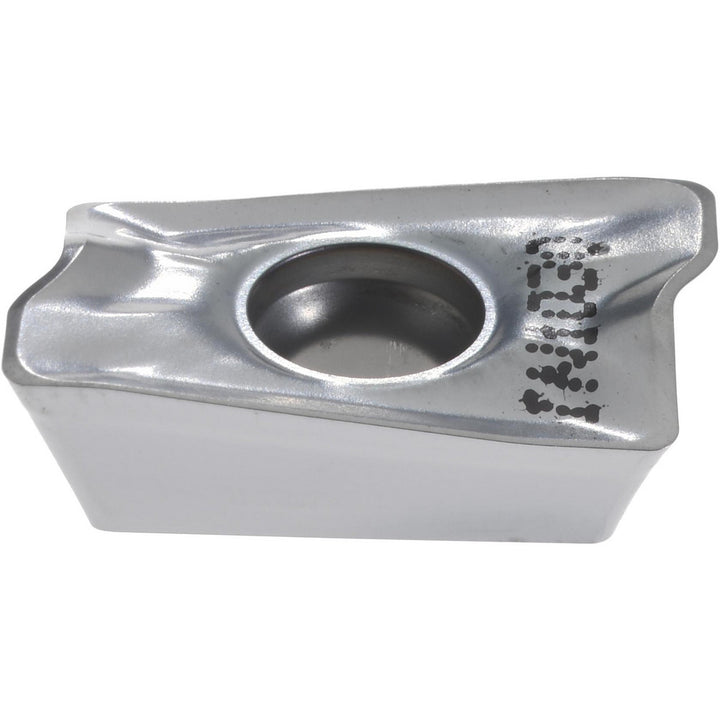

AOMT170508R IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5873045
MFR# 5873045ISO/ANSI# AOMT170508R IN1030Series AOMT
$22.41List $28.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5873045 is a AOMT170508R IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAOMT170508R IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1G; 12L1G; 12N1G; 22J3G; 22J5G; 2J1G; 2L1G
Cutting edge effective length0.6330
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170508
Insert styleAOMT
Iso codeAOMT170508R IN1030
Length0.7280
Length range0.7000 to 0.9000
Manufacturers catalog number5873045
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width0.4210
