Ingersoll Cutting Tools
16ERM18UN TT9030 Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5901569
MFR# Ingersoll Cutting Tools-5901569ISO/ANSI# 16ERM18UN TT9030Cat# 16ERM18UNSeries 16ER
$19.38List $24.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeTT9030
MaterialCarbide
CoatingTiAlN
Description

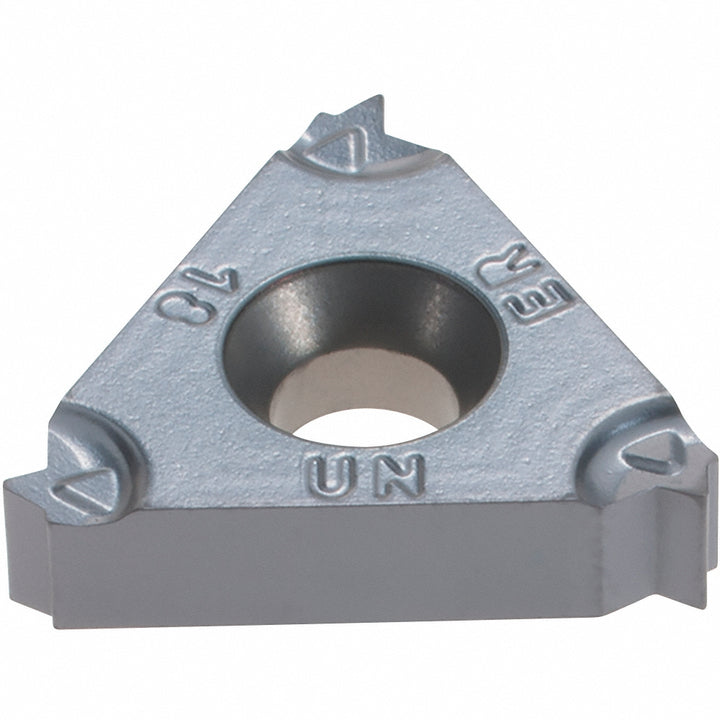

The Ingersoll Cutting Tools 5901569 is a 16ERM18UN TT9030 carbide indexable insert, grade TT9030, TiAlN coated. Suited for stainless steel.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0060
Cutting edge to theoretical edge length0.0390
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert styleER
Iso code16ERM18UN TT9030
Manufacturers catalog number16ERM18UN
Manufacturer gradeTT9030
Primary workpiece materialStainless Steel
Threads per inch18
Thread standardUN 60 Degree
Thread typeExternal
