16ER2.00ISO Solid Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5901954

Ingersoll Cutting Tools

16ER2.00ISO Solid Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5901954

MFR# Ingersoll Cutting Tools-5901954ISO/ANSI# 16ER2.00ISOSeries ISO Metric Regular Type

$23.12List $29.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeTT9030
MaterialSolid Carbide
CoatingTiAlN

Description

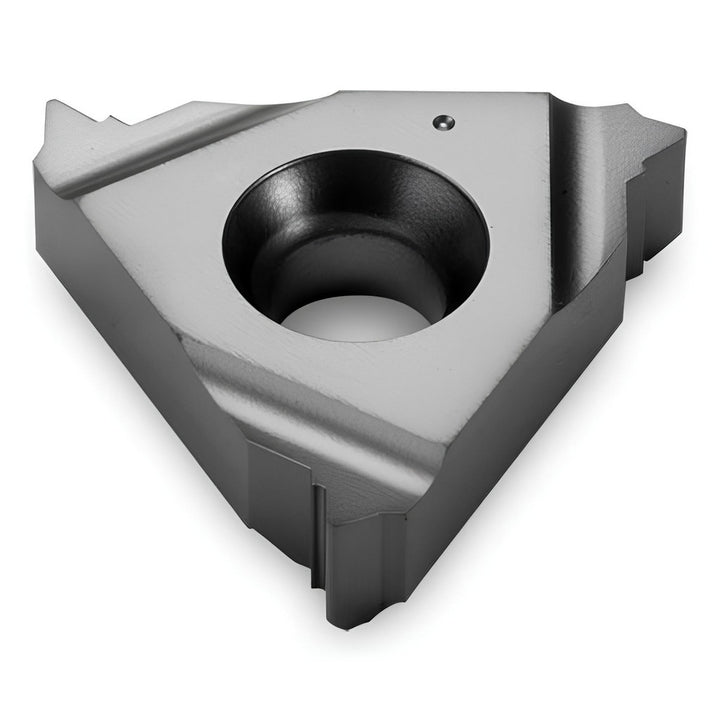

The Ingersoll Cutting Tools 5901954 is a 16ER2.00ISO solid carbide indexable insert, grade TT9030, TiAlN coated. Suited for steel, stainless steel, cast iron.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting edge to theoretical edge length0.0510
Face of insert to tip centerline0.0390
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Iso code16ER2.00ISO
Manufacturer gradeTT9030
Number of teeth per side1
Pitch (mm)2.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialHard Material; Superalloys & Titanium; Non-Ferrous Metal
Thickness0.1430
Thread standardMetric 60 Degree
Thread typeExternal
