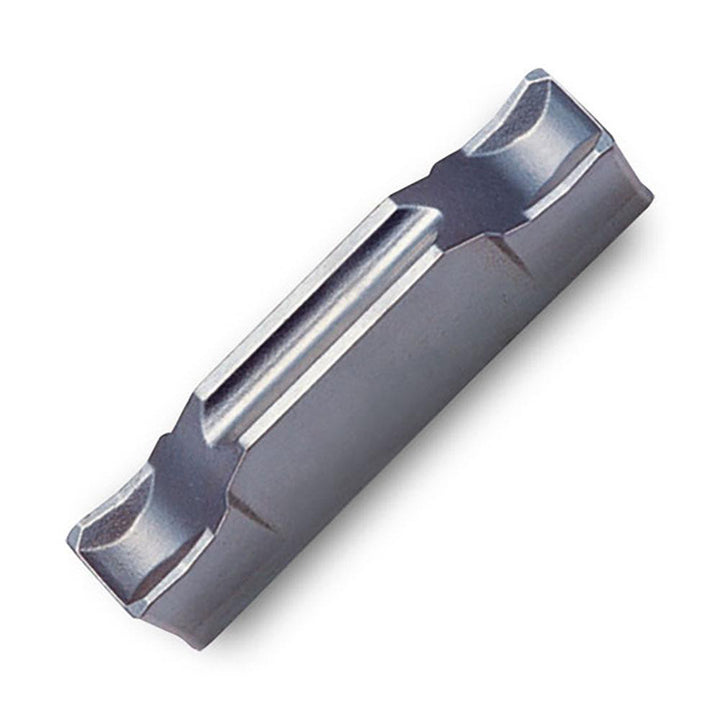

TDC2 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6000194

Ingersoll Cutting Tools

TDC2 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6000194

MFR# 6000194ISO/ANSI# TDC2Series TDC

$31.73List $39.95 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT8020
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6000194 is a TDC2 carbide indexable insert, grade TT8020, TiCN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeTDC2
ChipbreakerC
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1850
Cutting tool applicationGrooving; Parting
Cutting width0.0790
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size code2
Insert styleTDC
Insert width0.0790
Iso codeTDC2
Lead angle0.000
Lead angle directionNeutral
Manufacturer gradeTT8020
Maximum depth of cut0.7480
Multi use toolYes
Overall length0.7900
Overall width0.0790
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
Relief angle7.000
Single or double endDouble
StandardsISO
