Ingersoll Cutting Tools

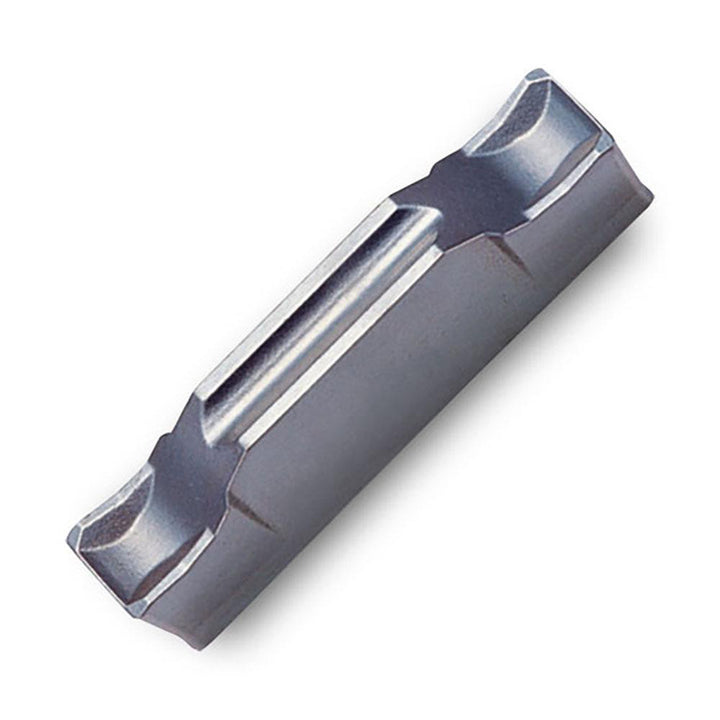

TDC3 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6000200
MFR# 6000200ISO/ANSI# TDC3Series TDC
$31.73List $39.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT8020
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6000200 is a TDC3 solid carbide indexable insert, grade TT8020, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeTDC3
ChipbreakerC
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1850
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleTDC
Iso codeTDC3
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTT8020
Material gradeC1; C2; C3; C4; C5; C6
Maximum depth of cut0.7480
Multi use toolYes
Overall length0.7900
Primary workpiece materialSteel; Stainless Steel
Relief angle7.000
Single or double endDouble
