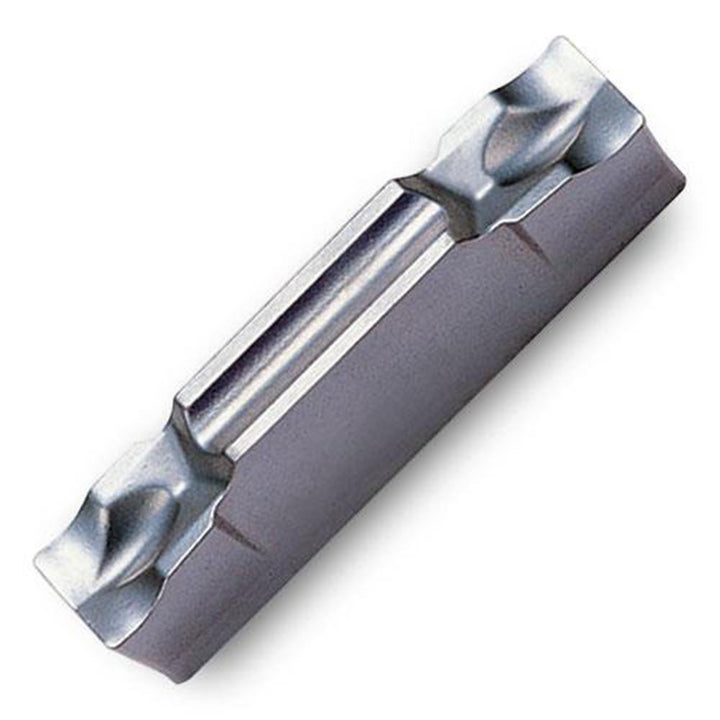

TDJ1.4 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6000914
MFR# 6000914ISO/ANSI# TDJ1.4Series TDJ
$31.73List $39.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6000914 is a TDJ1.4 carbide indexable insert, grade TT9080, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeTDJ1.4
ChipbreakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0060
Cutting directionNeutral
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size code4
Insert styleTDJ
Iso codeTDJ1.4
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTT9080
Maximum depth of cut0.7480
Multi use toolYes
Overall length0.7900
Primary workpiece materialSteel; Stainless Steel
Relief angle7.000
Single or double endDouble
