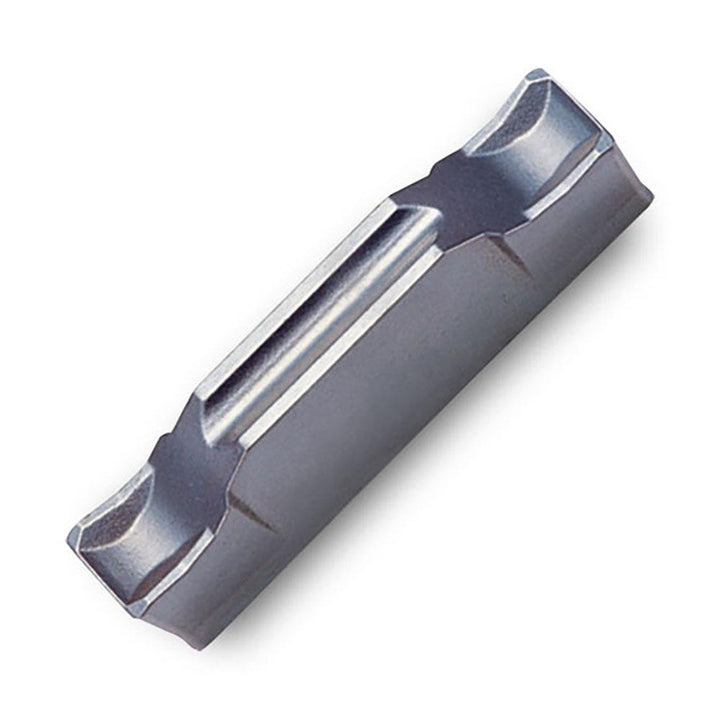

TDC3 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6000999

Ingersoll Cutting Tools

TDC3 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6000999

MFR# 6000999ISO/ANSI# TDC3Series TDC

$31.73List $39.95 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6000999 is a TDC3 carbide indexable insert, grade TT9080, TiAlN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeTDC3
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1850
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleTDC
Insert width0.1180
Iso codeTDC3
Lead angle0.000
Lead angle directionNeutral
Manufacturer gradeTT9080
Maximum depth of cut0.7480
Multi use toolYes
Overall length0.7900
Overall width0.1180
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or double endSingle
StandardsISO
