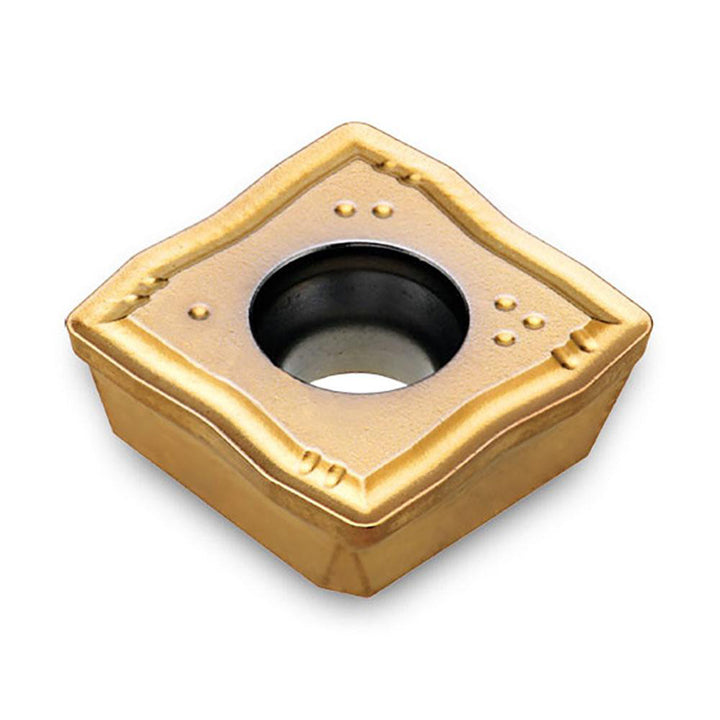

SOMT150510SK IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 6108643

Ingersoll Cutting Tools

SOMT150510SK IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 6108643

MFR# 6108643ISO/ANSI# SOMT150510SK IN1030Series SOMT

$22.60List $28.45 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6108643 is a SOMT150510SK IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSOMT150510SK IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius0.0390
Cutter series compatibilityQR
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.5900
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code150510
Insert styleSOMT
Iso codeSOMT150510SK IN1030
Length0.5900
Length range0.5000 to 0.6000
Manufacturers catalog number6108643
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1990
Thickness range0.1850 to 0.2000
Width0.5900
