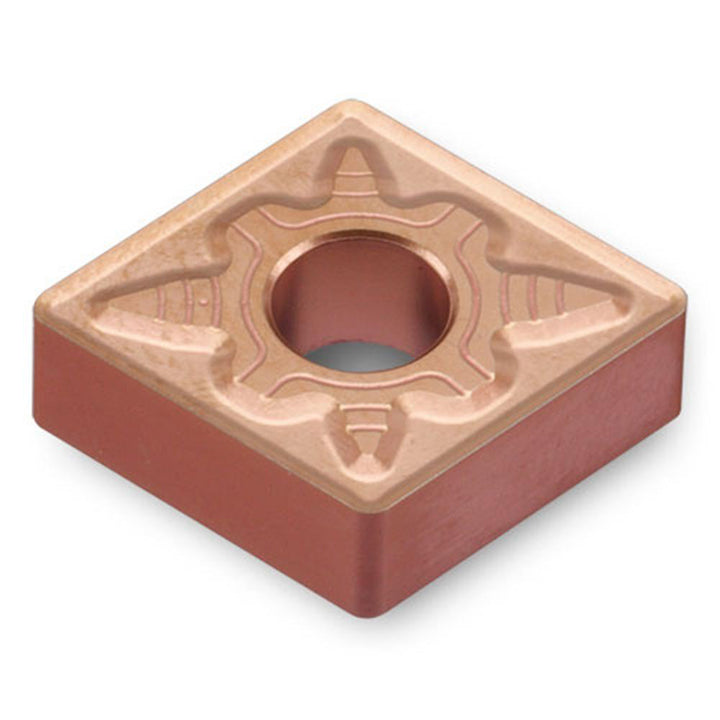

CNMG120404EM TT9080 Solid Carbide Insert, Grade TT9080, AlTiN - Ingersoll Cutting Tools 6115367
MFR# 6115367ISO/ANSI# CNMG120404EM TT9080Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT9080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 6115367 is a CNMG120404EM TT9080 solid carbide indexable insert, grade TT9080, AlTiN coated. Suited for stainless steel, steel, super-alloys & titanium.
Specifications
Ansi codeCNMG431EMTT9080
Chip breakerEM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404EM TT9080
Manufacturer gradeTT9080
Maximum depth of cut0.2000
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Width in1
Wiper edgeNo
