Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6130692

Ingersoll Cutting Tools

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6130692

MFR# 6130692Series TPF

$179.12List $222.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN

Description

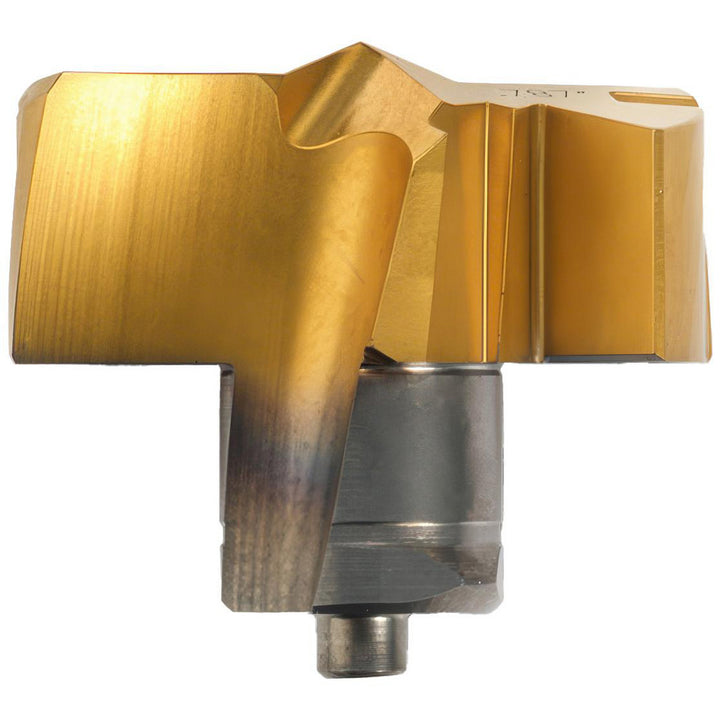

The Ingersoll Cutting Tools 6130692 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsCoolant-Thru; Drilling; Flat Bottom
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1
Drill point angle90
Flute length (mm)9.00
Flute typeStraight
Functional length0.3700
Height (mm)11.00
Included angle degree90
Insert holding methodClamp
Insert seat size25
Iso numberTPF2540R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30; M15; M35; S05; S20
Number of flutes2
Overall length projection0.4450
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Spiral typeStraight
StandardsANSI
StyleTPF
Tip materialSolid Carbide
