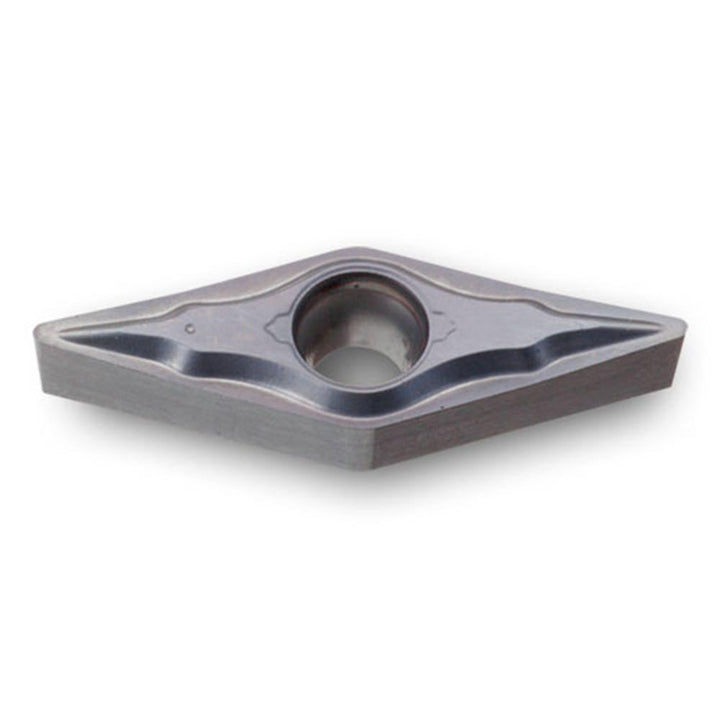

VBGT160404SA TT9020 Solid Carbide Insert, Grade TT9020, TiCN - Ingersoll Cutting Tools 6138031
MFR# 6138031ISO/ANSI# VBGT160404SA TT9020Series VBGT
$34.62List $44.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9020
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6138031 is a VBGT160404SA TT9020 solid carbide indexable insert, grade TT9020, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeVBGT331SATT9020
Chip breakerSA
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVBGT
Insert thickness0.1870
Iso codeVBGT160404SA TT9020
Manufacturer gradeTT9020
Maximum depth of cut0.0590
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle5
Tolerance codeG
Width in3/8
Wiper edgeNo
