Ingersoll Cutting Tools

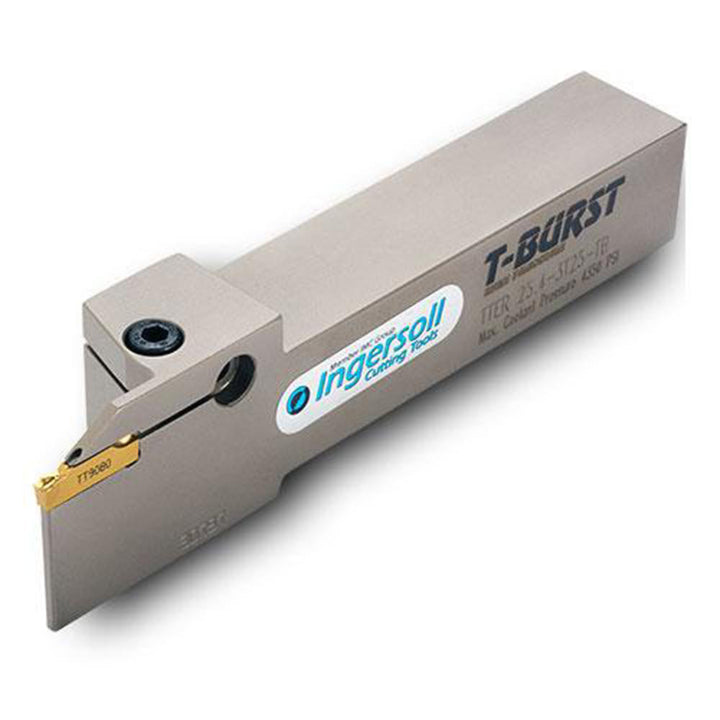

Indexable Grooving - Ingersoll Cutting Tools 6138843
MFR# 6138843Series TTER/L-TB
$315.34List $335.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Ingersoll Cutting Tools 6138843 indexable grooving. Suited for universal. Series TTER/L-TB.
Specifications
Back of bar to cutting edge (mm)12.00
Compatible insert size codeTD 3; TS 3
Coolant throughYes
Hand of holderRight Hand
Head length1.69
Insert holding methodClamp
Insert seat size3
Maximum depth of cut0.9800
Maximum groove width0.0950
Maximum workpiece diameter1.9600
Minimum groove width0.1040
Multi use toolYes
Overall length in6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.3100
Toolholder materialSteel
Toolholder styleTTER
Toolholder typeExternal Grooving
