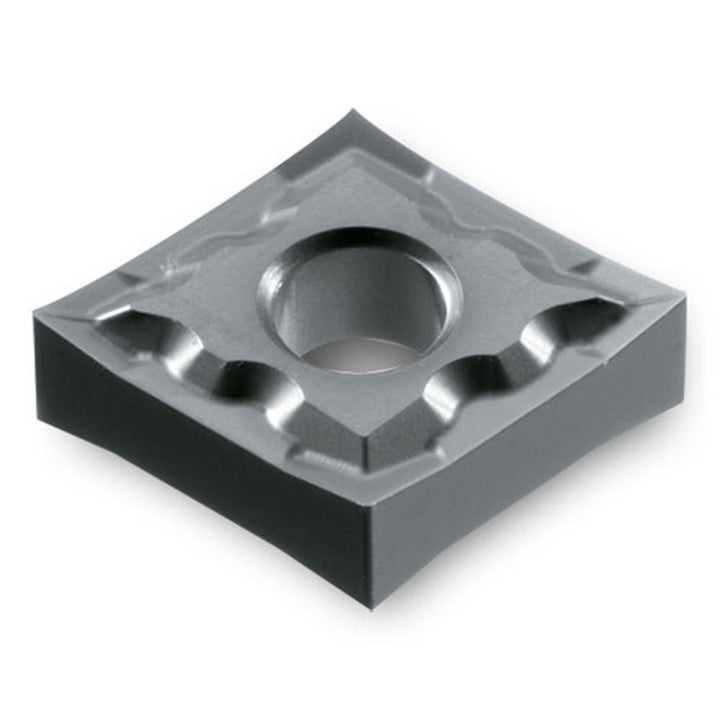

CNGG090402ML K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 6139412
MFR# 6139412ISO/ANSI# CNGG090402Series CNGG
$14.54List $18.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeK10
MaterialCarbide
Description
The Ingersoll Cutting Tools 6139412 is a CNGG090402ML K10 carbide indexable insert, grade K10. Suited for cast iron, superalloy, titanium, non-ferrous metal.
Specifications
Ansi insert codeCNGG330.5
Ansi size code330.5
Chip breakerML
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating processUncoated
Corner radius0.0080
Grade characteristicsCast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code330.5
Insert styleCNGG
Insert thickness0.1870
Iso codeCNGG090402ML K10
Iso insert codeCNGG090402
Iso size code090402
Manufacturer gradeK10
Maximum depth of cut0.0470
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloy; Titanium; Non-Ferrous Metal
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeG
Wiper edgeNo
