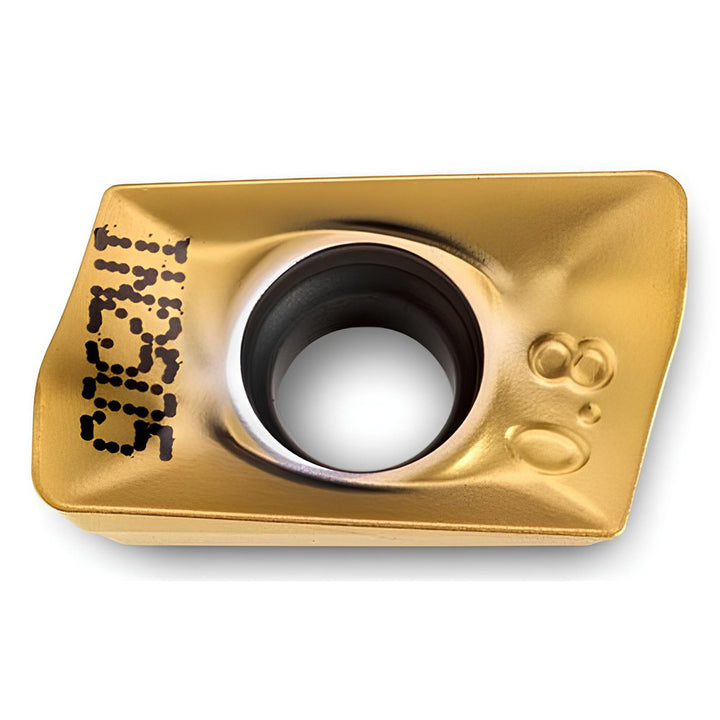

BOMT130408R IN2504 Solid Carbide Insert, Grade IN2504, TiAlN - Ingersoll Cutting Tools 6154077

Ingersoll Cutting Tools

BOMT130408R IN2504 Solid Carbide Insert, Grade IN2504, TiAlN - Ingersoll Cutting Tools 6154077

MFR# 6154077ISO/ANSI# BOMT130408R IN2504Series BOMT

$24.48List $31.35 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2504
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6154077 is a BOMT130408R IN2504 solid carbide indexable insert, grade IN2504, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeBOMT130408R IN2504
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12_1R; 12J1R; 12L1R; 22_3R; 22J3R; 2J1R
Cutting edge styleCorner Rounded
Included angle degree82
Inscribed circle0.3200
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code130408
Insert styleBOMT
Iso codeBOMT130408R IN2504
Length0.5580
Length of cut (mm)12.4500
Length range0.5000 to 0.6000
Manufacturers catalog number6154077
Manufacturer gradeIN2504
Material applicationCast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.4900
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1900
Thickness range0.1850 to 0.2000
Width0.3200
