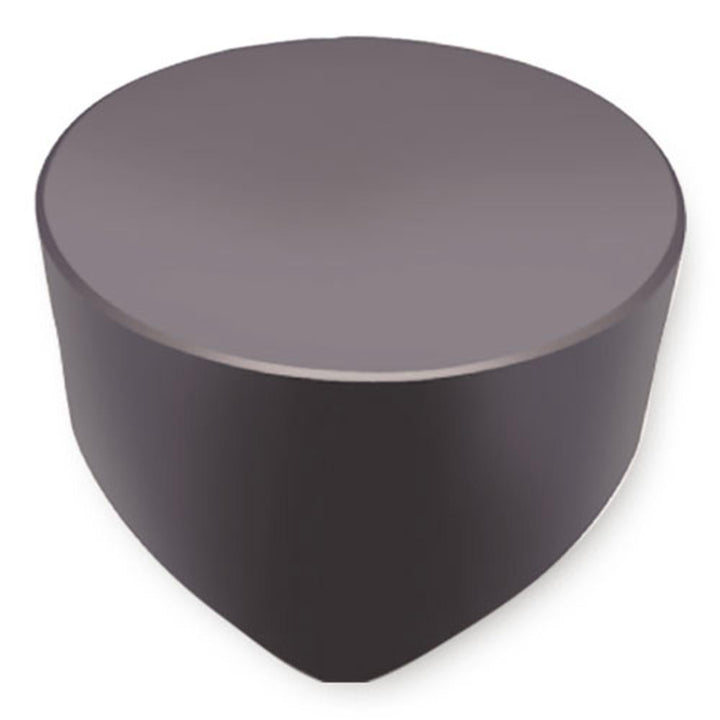

RPGX090700T6 TC3030 Ceramic Insert, Grade TC3030 - Ingersoll Cutting Tools 6158920
MFR# 6158920ISO/ANSI# RPGX090700Series RPGX
$37.72List $46.75
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeTC3030
MaterialCeramic
Description
The Ingersoll Cutting Tools 6158920 is a RPGX090700T6 TC3030 ceramic indexable insert, grade TC3030. Suited for superalloy, titanium.
Specifications
Ansi insert codeRPGX35
Ansi size code35
Chip breakerX
Clearance codeP
Coating processUncoated
Corner radius in3/16
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCeramic
Insert shapeR - Round
Insert size code35
Insert styleRPGX
Insert thickness0.3120
Iso codeRPGX090700T6 TC3030
Iso insert codeRPGX090700
Iso size code090700
Manufacturer gradeTC3030
Number of cutting edges2
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle11
Side clearancePositive
Tolerance codeG
Wiper edgeNo
