Ingersoll Cutting Tools

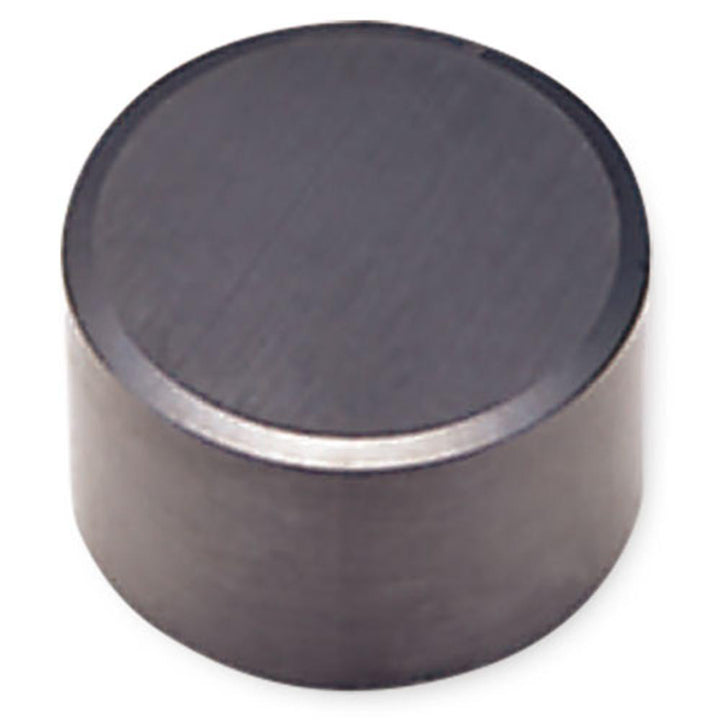

RNGN120700T6 TC3030 Ceramic Insert, Grade TC3030 - Ingersoll Cutting Tools 6158924
MFR# 6158924ISO/ANSI# RNG120700Series RNG
$29.17List $36.15
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeTC3030
MaterialCeramic
Description
The Ingersoll Cutting Tools 6158924 is a RNGN120700T6 TC3030 ceramic indexable insert, grade TC3030. Suited for superalloy, titanium.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerNo Chip Breaker
Chip breaker operationNo Chip Breaker
Clearance codeN
Coating processUncoated
Corner radius in1/4
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45T6
Insert styleRNG
Insert thickness0.3130
Iso codeRNGN120700T6 TC3030
Iso insert codeRNG120700
Iso size code120700
Manufacturer gradeTC3030
Maximum depth of cut0.2500
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeG
Width in1/2
Wiper edgeNo
