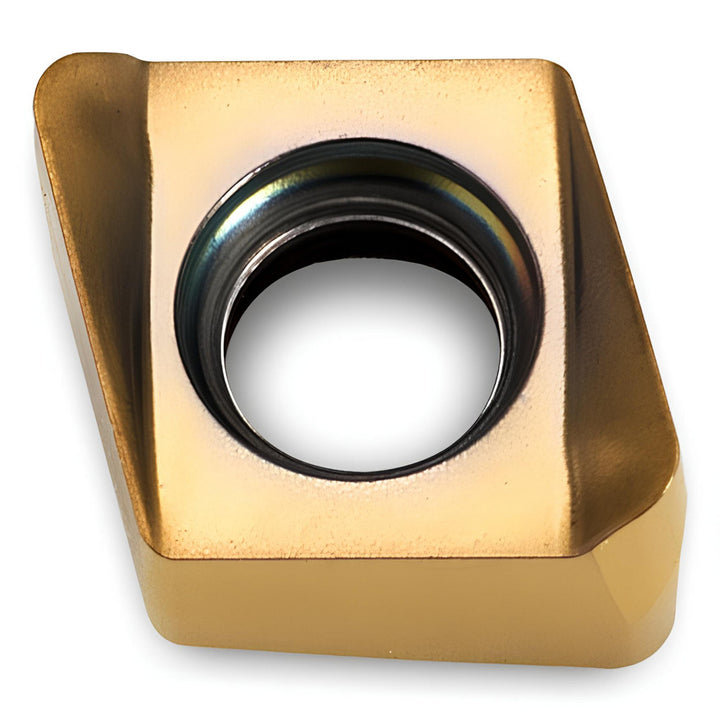

MNHU060308R-HW IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6164296

Ingersoll Cutting Tools

MNHU060308R-HW IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6164296

MFR# 6164296ISO/ANSI# MNHU060308R-HW IN2505Series MNHU

$25.26List $32.35 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6164296 is a MNHU060308R-HW IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeMNHU060308R-HW IN2505
Chip breakerHW
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1TJ1D; TJ1D
Cutting edge styleCorner Rounded
Included angle degree86
Inscribed circle0.2600
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060308
Insert styleMNHU
Iso codeMNHU060308R-HW IN2505
Length0.2600
Length of cut (mm)6.1000
Length range0.0000 to 0.3200
Manufacturers catalog number6164296
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Maximum depth of cut0.2400
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1840
Thickness range0.1750 to 0.1850
Width0.2600
