MNCU060304FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 6166509

Ingersoll Cutting Tools

MNCU060304FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 6166509

MFR# 6166509ISO/ANSI# MNCU060304FR-P IN10KSeries MNCU

$25.76List $33.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN10K
MaterialSolid Carbide

Description

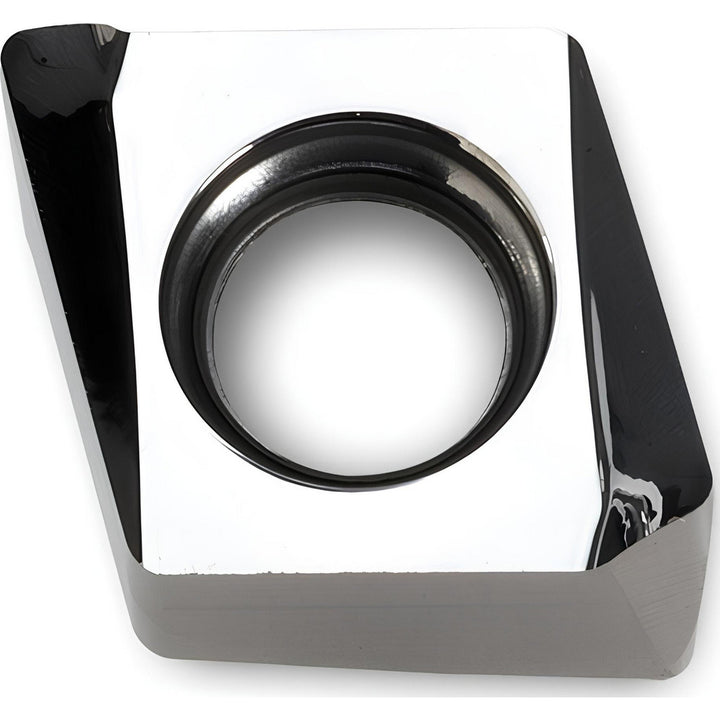

The Ingersoll Cutting Tools 6166509 is a MNCU060304FR-P IN10K solid carbide indexable insert, grade IN10K. Suited for non-ferrous metal.

Specifications

Ansi codeMNCU060304FR-P IN10K
Chip breakerP
Coating processUncoated
Corner radius in1/64
Cutter series compatibility1TJ1D; 1TV1D; TJ1D
Cutting edge styleCorner Rounded
Included angle degree86
Inscribed circle0.2600
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060304
Insert styleMNCU
Iso codeMNCU060304FR-P IN10K
Length0.2600
Length of cut (mm)6.1000
Length range0.0000 to 0.3200
Manufacturers catalog number6166509
Manufacturer gradeIN10K
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Maximum depth of cut0.2400
Multi use toolNo
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1960
Thickness range0.1850 to 0.2000
Width0.2600
