Ingersoll Cutting Tools

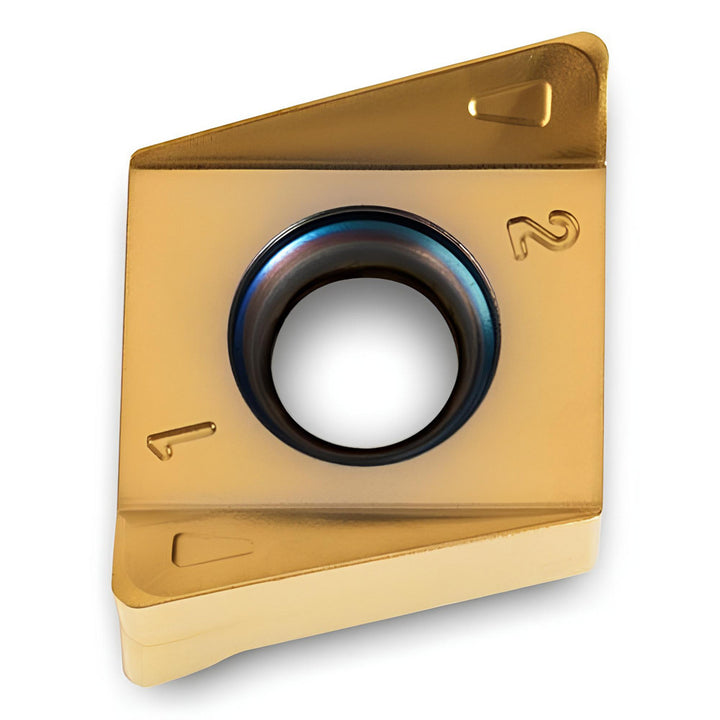

MNHU140708R-M IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 6177219
MFR# 6177219ISO/ANSI# MNHU140708R-M IN2530Series MNHU
$30.80List $39.45
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6177219 is a MNHU140708R-M IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeMNHU140708R-M IN2530
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1TJ1J; TJ5J
Cutting edge styleSharp
Included angle degree86
Inscribed circle0.5510
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code140708
Insert styleMNHU
Iso codeMNHU140708R-M IN2530
Length0.5510
Length of cut (mm)13.7200
Length range0.5000 to 0.6000
Manufacturers catalog number6177219
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.5400
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3620
Thickness range0.3500 to 0.5000
Width0.5510
