Ingersoll Cutting Tools

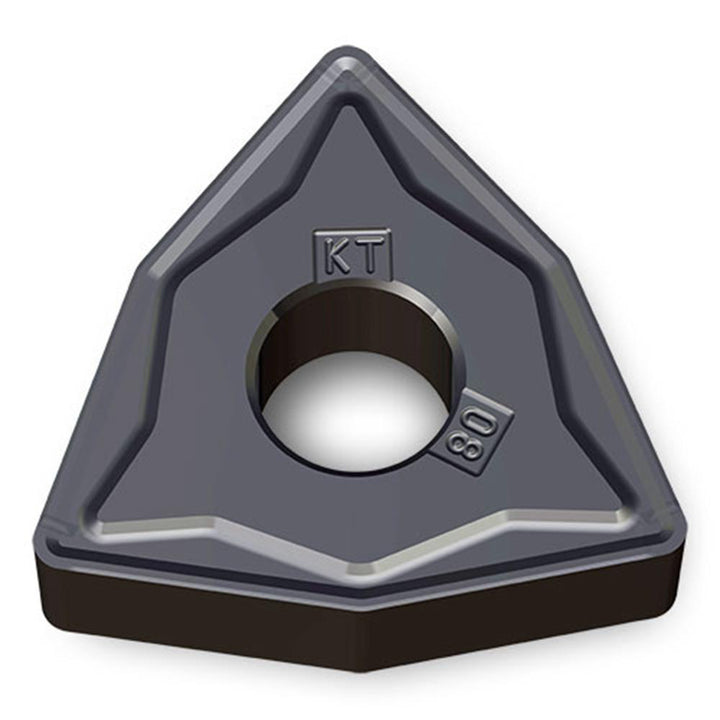

WNMG080408KT TT7025 Carbide Insert, Grade TT7025, Al2O3 - Ingersoll Cutting Tools 6186054
MFR# 6186054ISO/ANSI# WNMG080408KT TT7025Series WNMG
$17.12List $21.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTT7025
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6186054 is a WNMG080408KT TT7025 carbide indexable insert, grade TT7025, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerKT
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG080408KT TT7025
Manufacturer gradeTT7025
Maximum depth of cut0.2170
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
