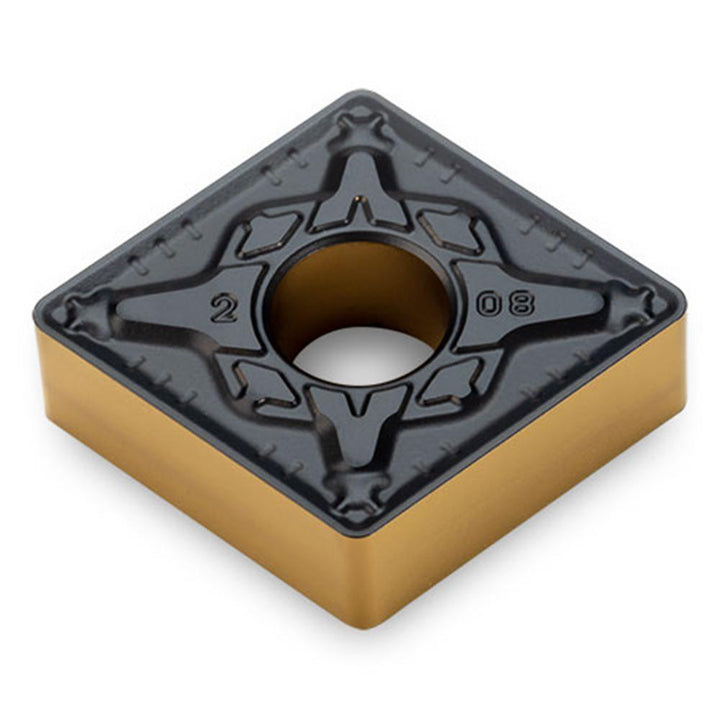

CNMG120408MGP TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 6188596
MFR# 6188596ISO/ANSI# CNMG120408Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT8115B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6188596 is a CNMG120408MGP TT8115B carbide indexable insert, grade TT8115B, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerMGP
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408MGP TT8115B
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeTT8115B
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
