Ingersoll Cutting Tools

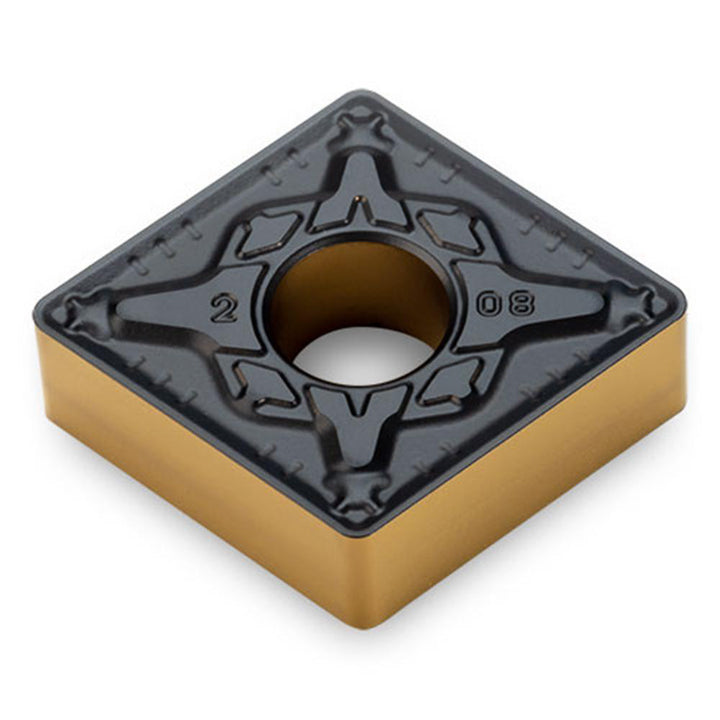

CNMG120408MGP TT8125B Solid Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6188597
MFR# 6188597ISO/ANSI# CNMG120408MGP TT8125BSeries CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6188597 is a CNMG120408MGP TT8125B solid carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Ansi codeCNMG432MGPTT8125B
Chip breakerMGP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408MGP TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
