Ingersoll Cutting Tools

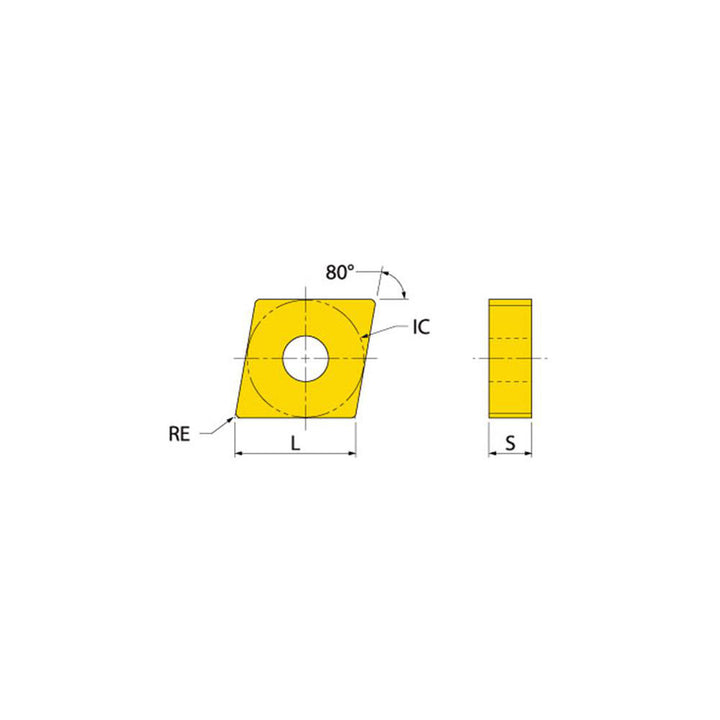

CNMG120404MT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212426
MFR# 6212426ISO/ANSI# CNMG120404Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212426 is a CNMG120404MT TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerMT
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120404MT TT8125B
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeTT8125B
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
