Ingersoll Cutting Tools

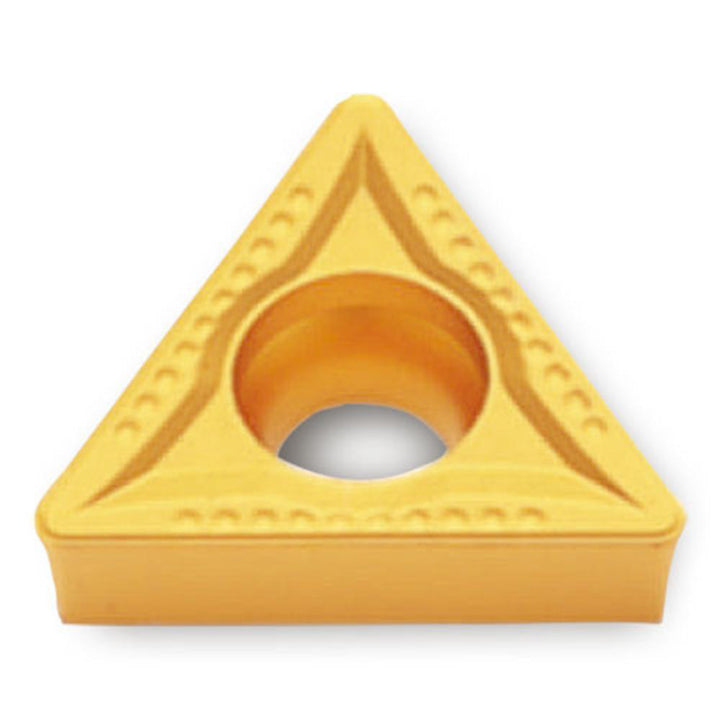

TCMT090204MT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212640
MFR# 6212640ISO/ANSI# TCMT090204MT TT8125BSeries TCMT
$11.19List $14.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212640 is a TCMT090204MT TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMT
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Hole diameter0.0980
Included angle60
Inscribed circle0.2190
Insert handNeutral
Insert holding methodScrew
Insert length0.3790
Insert materialCarbide
Insert shapeTriangle
Insert size code731
Insert styleTCMT
Insert thickness0.0940
Iso codeTCMT090204MT TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.0790
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Tolerance codeM
Wiper edgeNo
