Ingersoll Cutting Tools

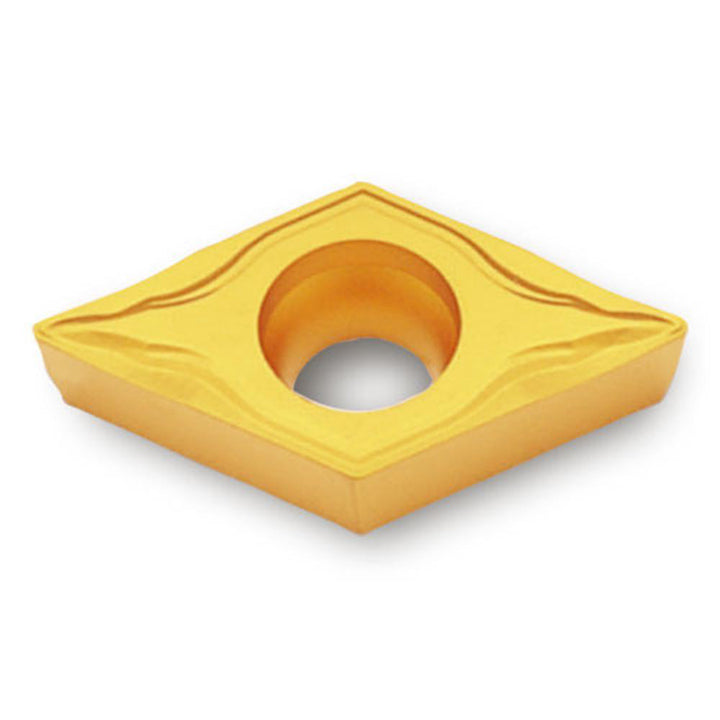

DCMT11T304FG TT8105B Carbide Insert, Grade TT8105B, Al2O3 - Ingersoll Cutting Tools 6212779
MFR# 6212779ISO/ANSI# DCMT11T304FG TT8105BSeries DCMT
$18.83List $24.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT8105B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212779 is a DCMT11T304FG TT8105B carbide indexable insert, grade TT8105B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerFG
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT11T304FG TT8105B
Manufacturer gradeTT8105B
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Tolerance codeM
Wiper edgeNo
