Ingersoll Cutting Tools
CNMG120408PC TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 6212909
MFR# 6212909ISO/ANSI# CNMG120408PC TT8125BSeries CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description

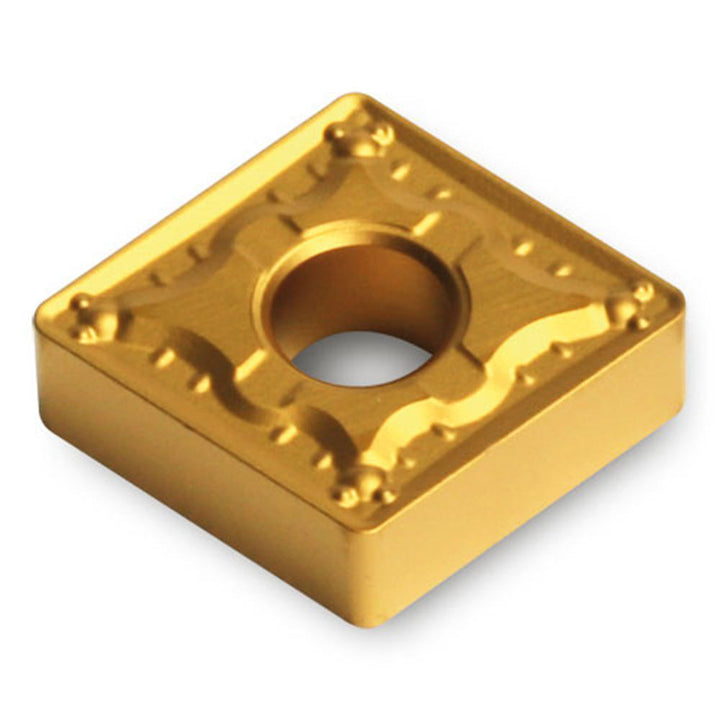

The Ingersoll Cutting Tools 6212909 is a CNMG120408PC TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCNMG432PCTT8125B
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408PC TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.1960
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
