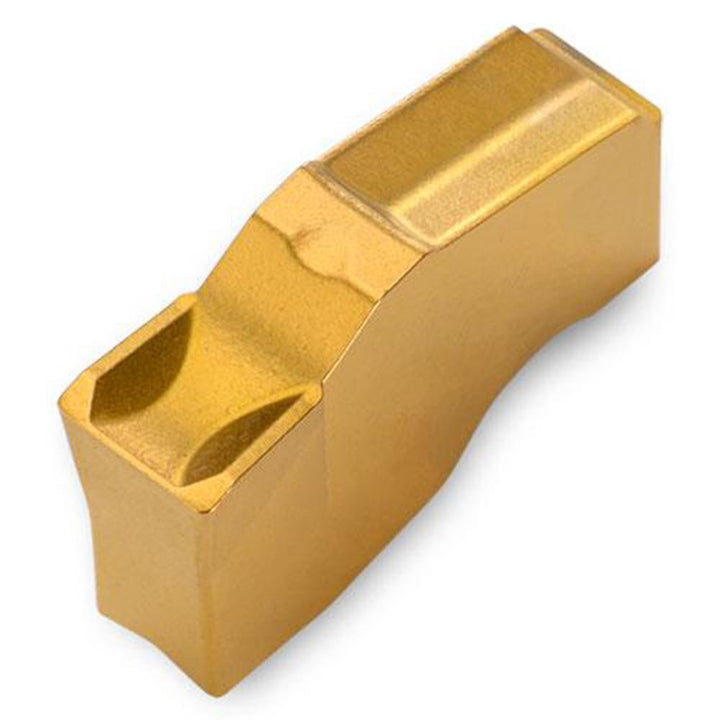

SFC3 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6320546

Ingersoll Cutting Tools

SFC3 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6320546

MFR# 6320546ISO/ANSI# SFC3Series SFC

$18.71List $23.55 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6320546 is a SFC3 carbide indexable insert, grade TT9080, TiAlN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeSFC3
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert holding methodSelf Clamp
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleSFC
Insert width0.1180
Iso codeSFC3
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTT9080
Multi use toolYes
Overall width0.1180
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or double endSingle
