Ingersoll Cutting Tools

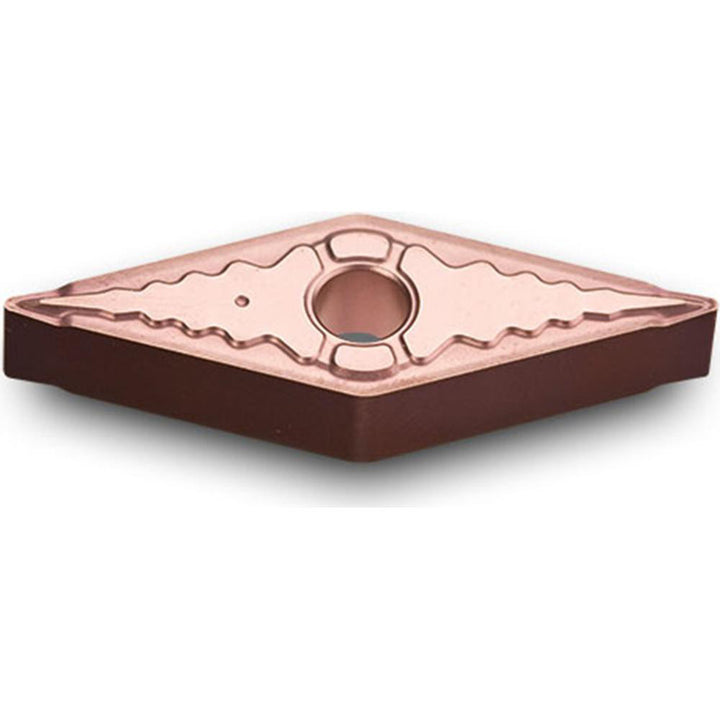

VNMG160404EA TT3020 Solid Carbide Insert, Grade TT3020, AlTiN - Ingersoll Cutting Tools 6336765
MFR# 6336765ISO/ANSI# VNMG160404EA TT3020Series VNMG
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT3020
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 6336765 is a VNMG160404EA TT3020 solid carbide indexable insert, grade TT3020, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeVNMG331EATT3020
Chip breakerEA
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160404EA TT3020
Manufacturer gradeTT3020
Maximum depth of cut0.0590
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
