Ingersoll Cutting Tools
Carbide Insert, Grade TT6080, AlTiNTiAlCrNTiN - Ingersoll Cutting Tools 6402176
MFR# 6402176Series TDXU-E
$31.98List $40.25
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT6080
MaterialCarbide
CoatingAlTiNTiAlCrNTiN
Description

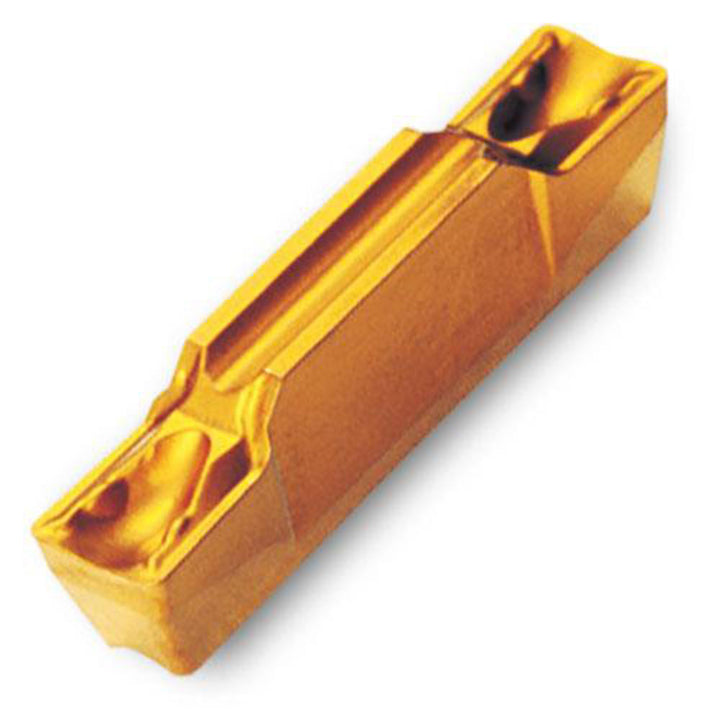

The Ingersoll Cutting Tools 6402176 is a carbide indexable insert, grade TT6080, AlTiNTiAlCrNTiN coated. Suited for cast iron.
Specifications
Chip breakerXU-Universal
Coating finishAlTiNTiAlCrNTiN
Coating processPVD
Corner radius0.0160
Cutting width0.1970
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code5
Insert styleTDXU
Lead angle90
Manufacturer gradeTT6080
Maximum depth of cut0.9450
Maximum depth of cut range0.3000 to 1.0000
Measurement typeDecimal Inch
Multi use toolYes
Overall length0.98
Primary workpiece materialCast Iron
RakePositive
Rake angle7
