Ingersoll Cutting Tools
Solid Carbide Insert, Grade TT6080, AlTiNTiAlCrNTiN - Ingersoll Cutting Tools 6402177
MFR# 6402177Series TDXU-E
$40.35List $50.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT6080
MaterialSolid Carbide
CoatingAlTiNTiAlCrNTiN
Description

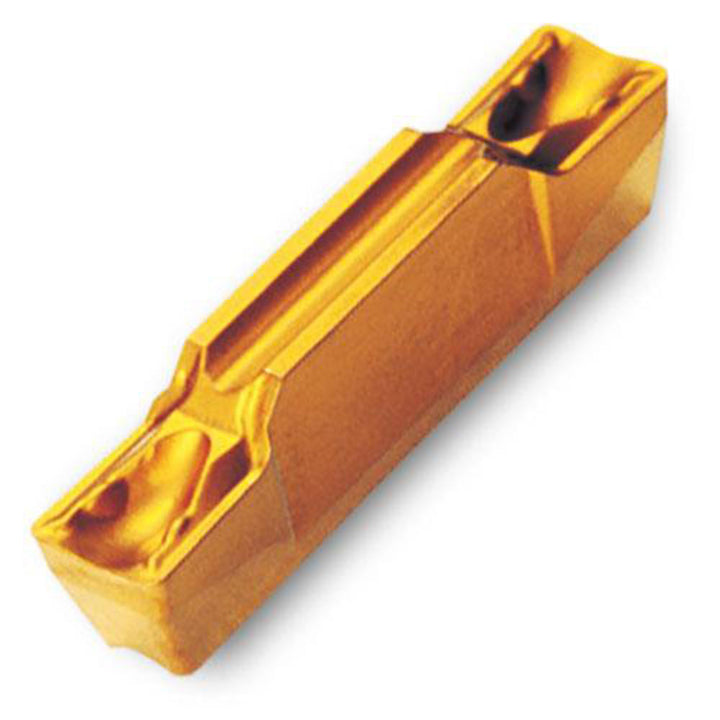

The Ingersoll Cutting Tools 6402177 is a solid carbide indexable insert, grade TT6080, AlTiNTiAlCrNTiN coated. Suited for cast iron.
Specifications
Chip breakerXU-Universal
Coating finishAlTiNTiAlCrNTiN
Coating processPVD
Corner radius0.0160
Cutting width0.2360
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code6
Insert styleTDXU
Lead angle90
Manufacturer gradeTT6080
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.9800
Primary workpiece materialCast Iron
RakePositive
Rake angle7.00
