Chamfer Mills & Back Chamfers - Internal Tool 64-1240-C

Internal Tool

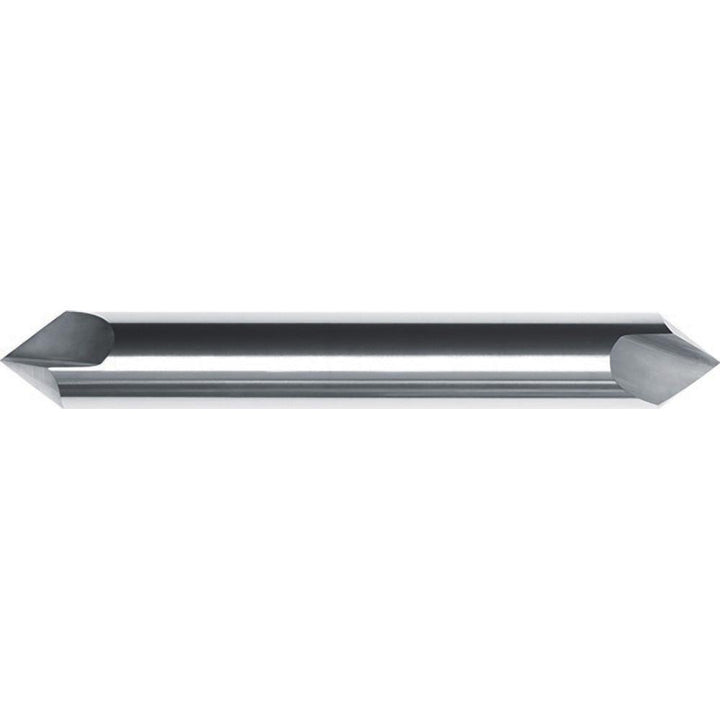

Chamfer Mills & Back Chamfers - Internal Tool 64-1240-C

MFR# 64-1240-CSeries 64

$126.99List $162.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingAlTiN

Description

The Internal Tool 64-1240-C chamfer mills & back chamfers. Series 64.

Specifications

Chamfer mill materialSolid Carbide
Coating finishAlTiN
Coolant throughNo
Cutter head diameter0.5000
Cutter head diameter frac in1/2
Cutting directionRight Hand
End typeDouble
Included angle82.00
Length of cut0.2800
Material applicationAluminum; Aluminum Alloy; Brass; Bronze; Copper; Cast Iron; Iron; Magnesium; Molybdenum; Monel; Plastic; Steel; Stainless Steel; Titanium; High-Nickel Steel; Copper Alloy; Magnesium Alloy; Nickel Base Alloy; Low-Carbon Steel; Medium-Carbon Steel
Overall length in3
Shank diameter in1/2
Shank length2.4400
TaperedNo
Tool applicationChamfering; Countersinking
