Iscar

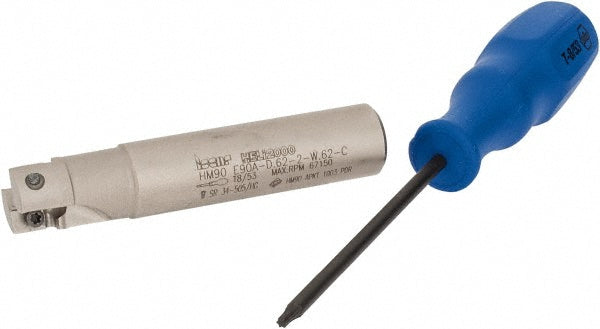

Indexable End Mills - Iscar 3101743
MFR# 3101743Cat# HM90 E90A-D.62-2-W.62-CSeries Heli2000
$340.88List $352.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3101743 indexable end mills. Series Heli2000.
Specifications
Complete insert compatibilityAPCR; APCT; APKR; APKT; APKW; HM90APCT; HM90APKT; HM90APKW 1003
Coolant throughYes
Cutter styleHM90 E90A-10
Cutting diameter5/8
Flute typeHelical
Head length1
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90A-D.62-2-W.62-C
Maximum depth of cut0.3940
Maximum ramping angle15
Number of cutter inserts2
Number of flutes2
Oshas180012007
Overall length in3-1/4
Shank diameter in5/8
Shank length in2-1/4
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length0.9400
