Iscar

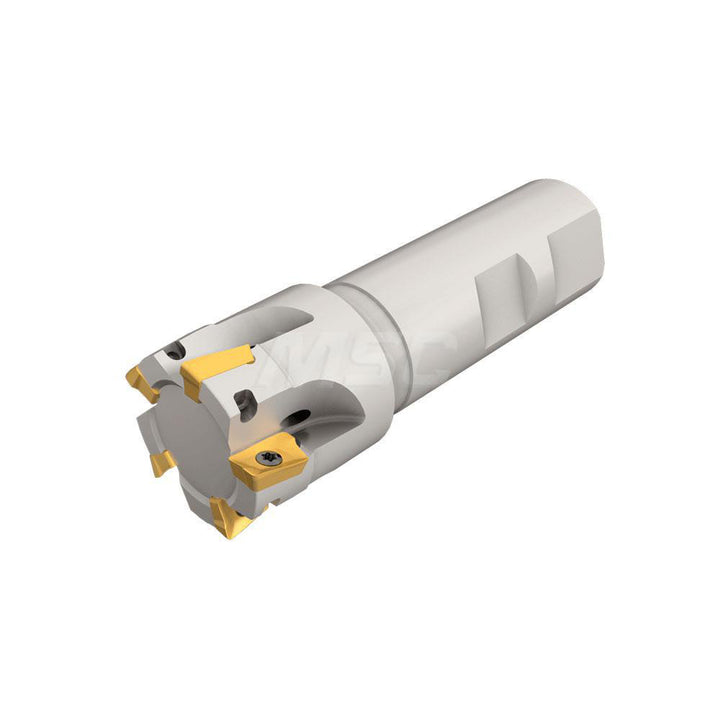

Indexable End Mills - Iscar 3102566
MFR# 3102566Series Heli2000
$362.19List $374.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3102566 indexable end mills. Series Heli2000.
Specifications
Complete insert compatibilityAPCR; APCT; APKR; APKT; APKW; HM90APCT; HM90APKT; HM90APKW 1003
Coolant throughNo
Cutter styleHM90 E90A-10
Head length1.5000
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Maximum depth of cut0.3940
Maximum ramping angle15
Number of cutter inserts2
Number of flutes2
Oshas180012007
Shank diameter in5/8
Shank length in5-1/2
Shank typeCylindrical
StandardsAS 9100
Tool applicationMilling
Usable length1.4400
