Iscar

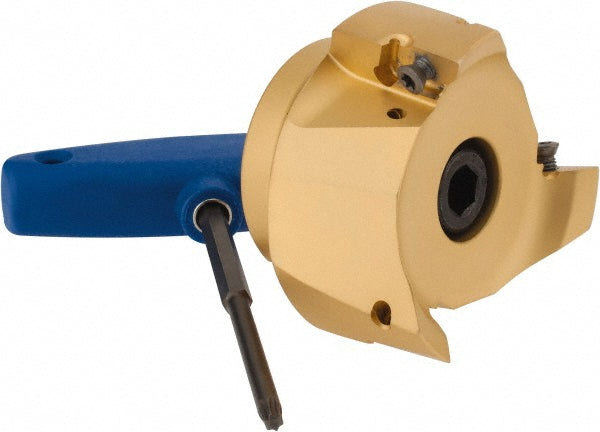

Indexable Milling Cutters - Iscar 3102771
MFR# 3102771Cat# HM90 FAL-D3.00-1.00-16Series Helialu
$899.65List $929.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3102771 indexable milling cutters. Series Helialu.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeHM90 APCR 1605
Complete insert compatibilityHM90 APCR 1605..R-P
Coolant throughYes
Cutter styleHM90 FAL-16
Cutting edge length0.6220
Hub diameter2.1700
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberHM90 FAL-D3.00-1.00-16
Maximum cutting diameter in3
Maximum depth of cut0.6220
Maximum insert radius0.1260
Maximum ramping angle6.70
Minimum insert radius0.0080
Number of cutter inserts3
Number of flutes3
Overall height2.0000
StandardsISO
