Iscar

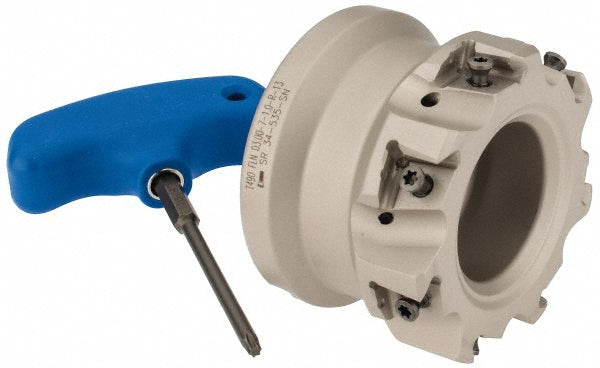

Indexable Milling Cutters - Iscar 3105323
MFR# 3105323Cat# T490 FLN D3.00-7-1.0-R-13Series Helitang
$1,026.51List $1,060.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Iscar 3105323 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeT490 LNT 1306
Complete insert compatibilityT490 LNMT; LNHT 1306
Coolant throughYes
Cutter styleT490 FLN-13
Cutting directionRight Hand
Cutting edge length0.4920
Hub diameter2.7600
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberT490 FLN D3.00-7-1.0-R-13
Maximum cutting diameter in3
Maximum depth of cut0.4920
Maximum insert radius0.2500
Maximum ramping angle0.90
Minimum insert radius0.0310
Number of cutter inserts7
Number of flutes7
Overall height2.0000
StandardsISO
