Iscar
Indexable Milling Cutters - Iscar 3105324
MFR# 3105324Series Helitang
$1,152.41List $1,190.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description

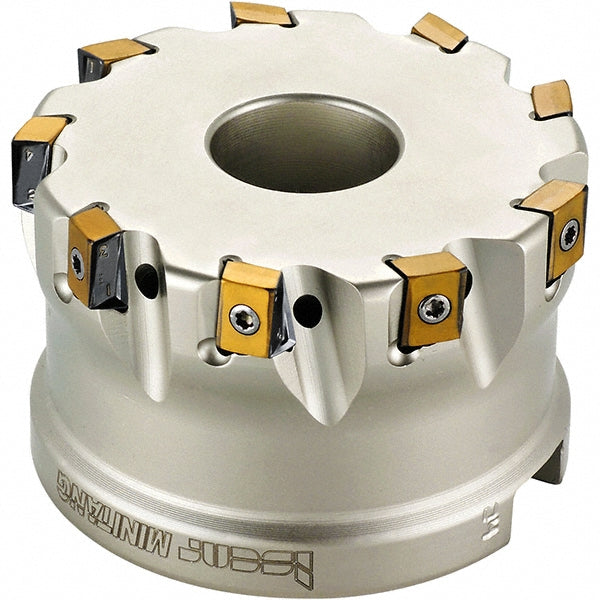

The Iscar 3105324 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter1.5000
Compatible insert size codeT490 LN 1306
Complete insert compatibilityT490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS
Coolant throughYes
Cutter styleT490 FLN-13
Cutting directionRight Hand
Hub diameter3.1900
Insert holding methodScrew
Lead angle0/90
Maximum cutting diameter in4
Maximum depth of cut0.4920
Maximum ramping angle0.70
Number of cutter inserts8
Number of flutes8
Overall height2.0000
StandardsISO
