Iscar

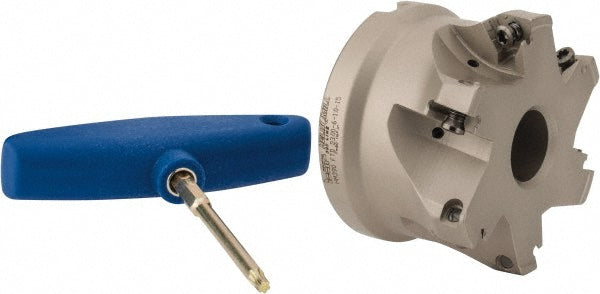

Indexable Milling Cutters - Iscar 3106564
MFR# 3106564Series HeliIQMill
$978.09List $1,010.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3106564 indexable milling cutters. Series HeliIQMill.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeHM390 TDKT 1505
Complete insert compatibilityHM390 TDKT 1505
Coolant throughYes
Cutter styleHM390 FTD-15
Hub diameter2.7600
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.5120
Maximum insert radius0.0310
Maximum ramping angle0.90
Number of cutter inserts6
Number of flutes6
Overall height2.0000
StandardsISO
