Iscar

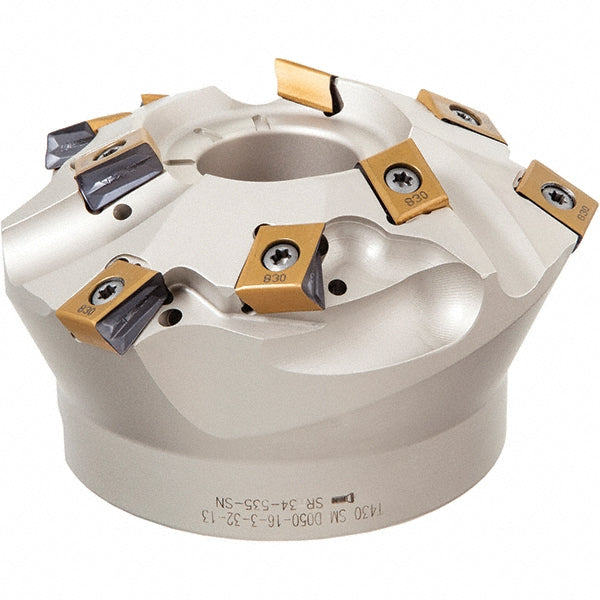

Indexable Milling Cutters - Iscar 3106949
MFR# 3106949Series Helitang
$794.10List $820.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3106949 indexable milling cutters. Series Helitang.
Specifications
Arbor hole diameter in1
Compatible insert size codeT490 LN
Complete insert compatibilityT490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS
Coolant throughYes
Counterbore diameter0.7800
Cutter styleT460 SM
Cutting directionRight Hand
Hub diameter2.3600
Insert holding methodScrew
Keyway width0.3750
Maximum cutting diameter3.3880
Maximum depth of cut1.1800
Maximum insert radius0.1220
Minimum cutting diameter in2
Number of cutter inserts9
Overall height2.1650
StandardsISO
