Iscar

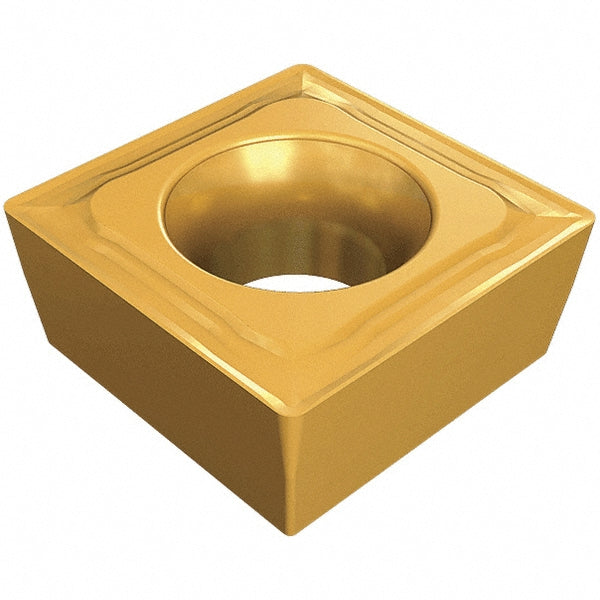

ISO 13399 Carbide Insert, Grade IC9150, TiCN - Iscar 5507537
MFR# 5507537ISO/ANSI# ISO 13399Series Isoturn
$15.91List $20.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC9150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507537 is a ISO 13399 carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert holding methodScrew
Insert materialCarbide
Insert shapeSquare
Insert size code3-1
Insert styleSCMT
Insert thickness in5/32
Iso codeISO 13399
Manufacturer gradeIC9150
Maximum depth of cut0.1378
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in3/8
