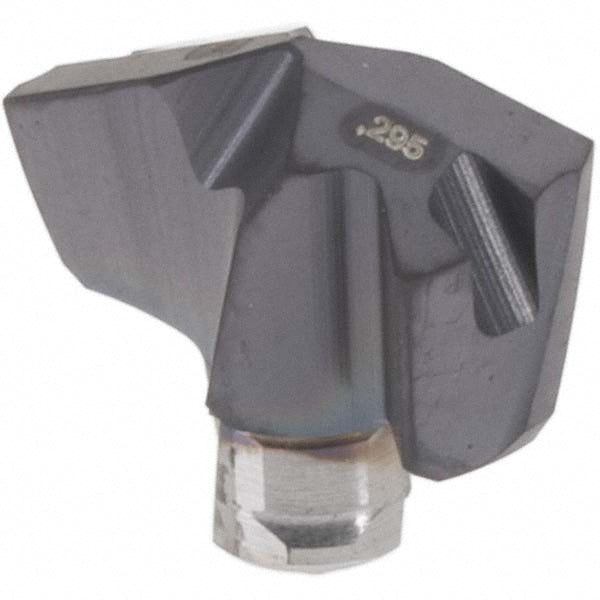

Carbide Insert, Grade IC908, TiAlN - Iscar 5509468
MFR# 5509468Series ICM
$88.31List $113.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509468 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.2950
Drill point angle140
Flute typeSpiral
Functional length0.1380
Height0.1810
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size7
Iso numberICM 075
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.1810
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
