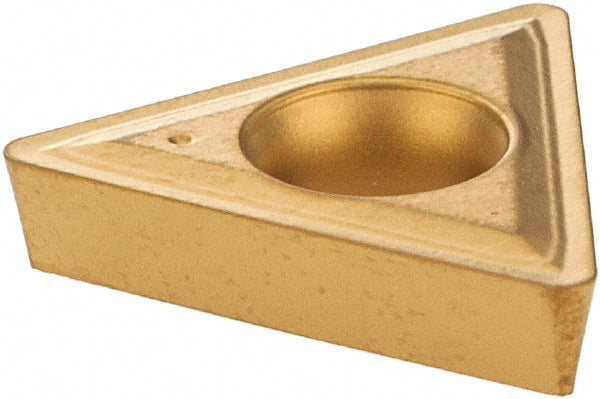

TPMT 160308 Solid Carbide Insert, Grade IC635, TiN - Iscar 5600417

Iscar

TPMT 160308 Solid Carbide Insert, Grade IC635, TiN - Iscar 5600417

MFR# 5600417ISO/ANSI# TPMT 160308Cat# TPMT 322 IC635Series Isoturn

$19.49List $25.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC635
MaterialSolid Carbide
CoatingTiN

Description

The Iscar 5600417 is a TPMT 160308 solid carbide indexable insert, grade IC635, TiN coated. Suited for steel, stainless steel.

Specifications

Ansi codeTPMT 322 IC635
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityE30; E45
Cutting edge effective length0.6185
Cutting edge styleHoned
Hole diameter0.1693
Included angle degree60
Inscribed circle0.3748
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPMT
Iso codeTPMT 160308
Length0.6500
Length range0.6500 to 0.7000
Manufacturers catalog numberTPMT 322 IC635
Manufacturer gradeIC635
Material applicationSteel; Stainless Steel
Material gradeC5
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6500
